Disc Neodymium Magnets Request Offer

Disc Neodymium Magnets

Looking for a magnet that can provide you with exceptional strength, versatility, and cost-effectiveness? Look no further than Neodymium Disc Magnets! Whether you're an engineer, DIY enthusiast, or just someone who loves experimenting with magnets, NdFeB disc magnets are the perfect choice for you.

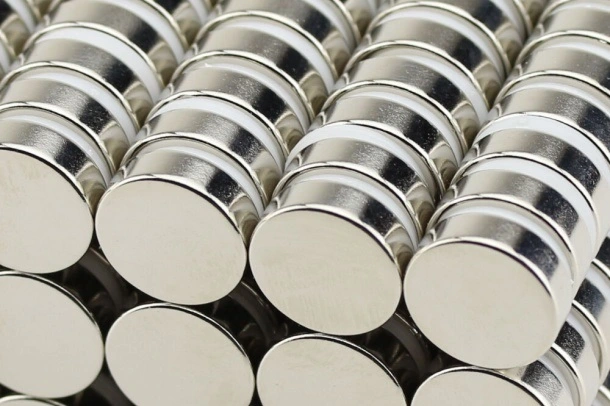

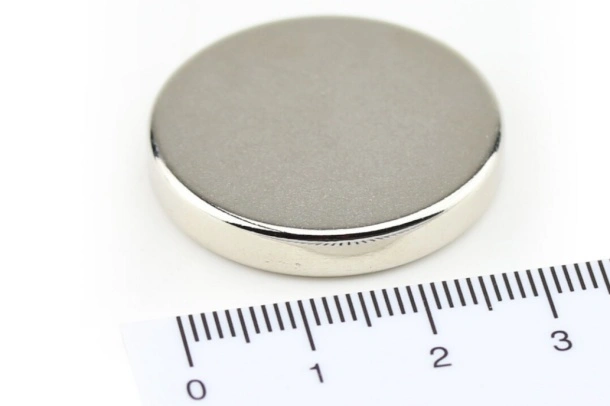

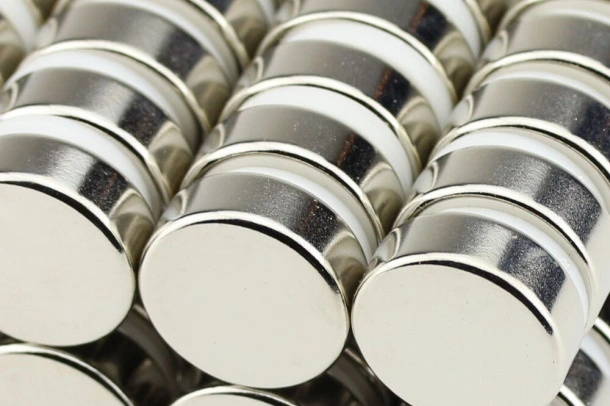

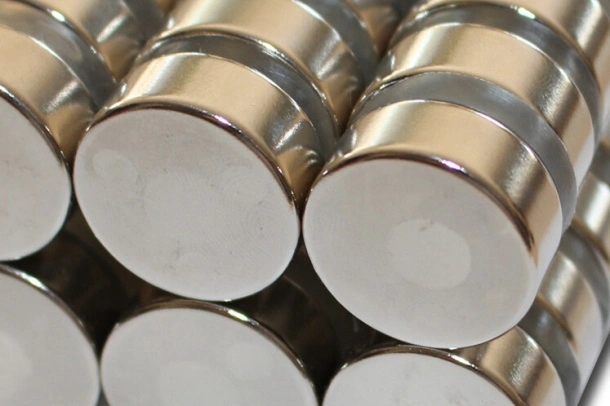

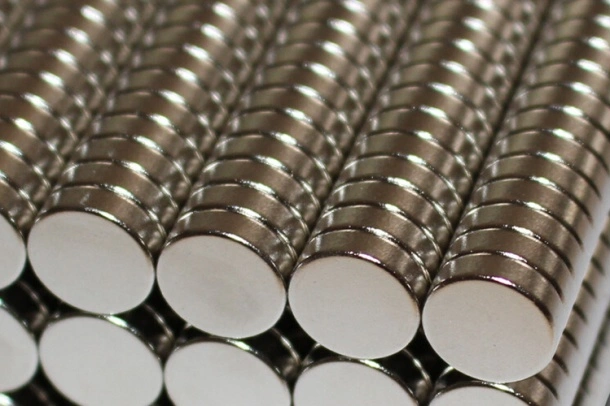

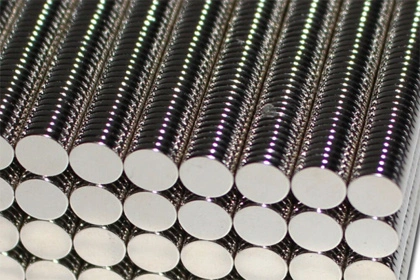

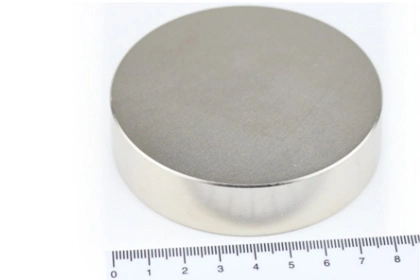

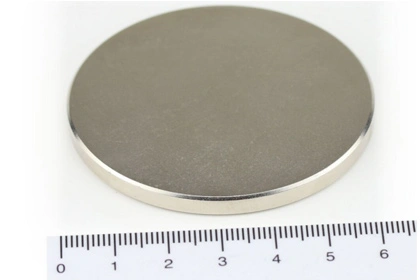

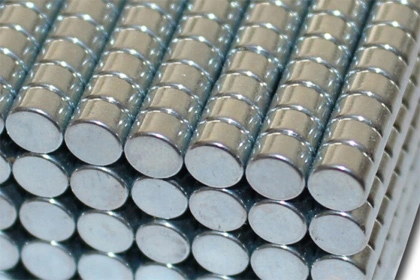

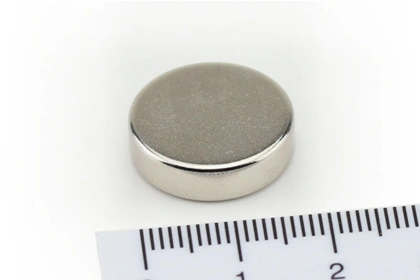

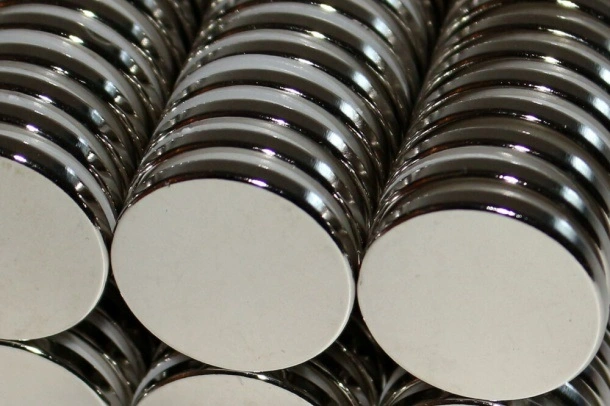

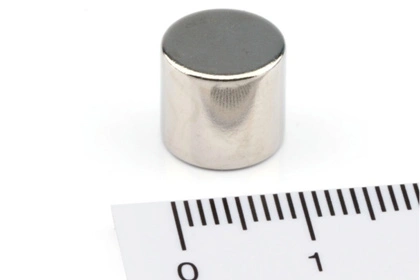

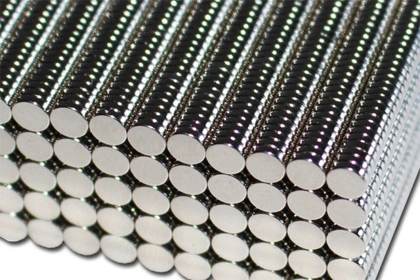

Types of Disc Neodymium Magnets




Features of Disc Neodymium Magnets


1

Neodymium (NdFeB) disc magnet are flat&round magnet and usually axially magnetized. Radially or diametrically magnetized neodymium disc magnets are custom neodymium magnets. Diametrically magnetized neodymium disc magnets are only produced according to customer's order.


2

The magnetic properties of neodymium disc magnets range from N30 to N52. N52 is the highest grade available for neodymium magnets. The size of neodymium disc magnets range from 1mm tiny neodymium disc magnet to 200mm super large neodymium disc magnets.


Specification of Disc Neodymium Magnets

Parameter

International Unit

Standard Data

Curie Temperature(Tc)

310-380

Maximum Operating Temperature(Tw)

80-230

Hardness

Hv

620

Electrical Resistivity (ᵨ)

Ω.cm

1.8x10⁻⁴  ~2.0x10⁻⁴

Density(D)

g/m³

7.45~-7.65

Recoil Permeability(µ rec)


1.05

Magnetization Field Strength(Hs)

kA/m

≧2400

kOe

≧30

Bending Strength

Mpa

295-345

Temp. Coefficient of Br

%℃

-0.11~-0.12

Temp.Coefficient of Hcj

%℃

-0.5~-0.7


Applications of Disc Neodymium Magnets

Neodymium disc magnets are suitable for all types of applications due to their small size and significant magnetic force. You will find that neodymium disc magnets are used in processes and model making, trade exhibition projects, high-performance motors, medical equipment, audio components, scientific research projects, etc.


Looking for NdFeB magnets for sale? These neodymium disk magnets are your answer. They have exceptional strength and energy density, offering powerful magnetism in a compact, long-lasting form. Not only are Neo Disc Magnets incredibly durable and resistant to corrosion and high temperatures, but they're also widely available, making them easy to source for any project. Plus, their small size ensures that they're perfect for compact designs and devices. So if you're looking for the best magnet for your next project, choose Neodymium Disc Magnets - and experience the unbeatable combination of strength, versatility, and cost-effectiveness. Order yours today and transform your projects today!

Products

FAQs of Disc Neodymium Magnets

How to get stronger magnetic force for neodymium disc magnets?

How to separate the neodymium disc magnets?

Please note that the force required to pull the magnet apart is usually 5 times that required to slide the magnet, so you can separate the strong neodymium disc magnets by sliding.

What is the standard measurement tolerances for NdFeB(neodymium) disc magnets?

Standard tolerances for neodymium disc magnets with small and middle size are +/- 0.05mm on both diameter and thickness dimensions.

How are round neodymium disc magnets made out?

The round and disc shaped neodymium magnets are made by sintering and cutting,the long rod magnets must be sintered first, then machine smaller&thin round neodymium disc magnets by cutting.

What's the most commonly used surface treatment for rare earth neodymium disc magnets?

Common surface treatment options for rare earth neodymium disc magnet include galvanized, nickel plated (Ni-Cu-Ni) coating.

What is the strongest & most powerful disc magnets?

The strongest & most powerful disc magnets should be made of rare earth magnetic material, neodymium disc magnets are the strongest & most powerful disc shaped magnets in the world.

Can you produce custom neodymium disc magnets for our project?

Yes,we can customize the neodymium disc magnets according to your specific specifications. Just send us special requirements. We will cooperate with you to determine the best solution for your professional project.

Where to buy high-quality & cheap neodymium round disc magnets?

Beilun Meank is a leading China neodymium magnets manufacturer,which supply high-quality round neodymium disc magnets with standard tolerance and magnetic properties, contact us today for cheap price.
