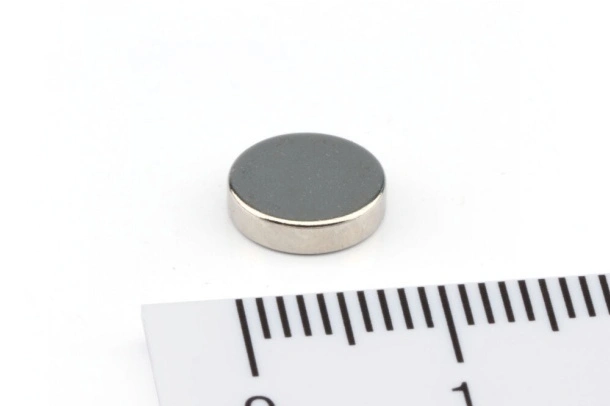

Ø8x2mm is one of the popular sizes in the family of 8mm round rare earth neodymium magnets.Its magnetic force varies from 33MGOe to 53 MGOe. Rust resistant plating is needed for neodymium-iron-boron,nickel(Ni-Cu-Ni) is usually plated on round shaped rare earth neodymium disc magnets 8x2mm.Our 8x2mm round disc neodymium magnets are provided with advantages of short lead time,cheaper price and high quality.
Magnet Type | Disc Magnet |
Material | Sintered NdFeB, N52 |
Dimension | D8 x 2mm |
Magnetizing Direction | Axially(poles on flat ends) |
Coating | Nickel (Ni-Cu-Ni) |
Strength(magnet to steel plate) | approx. 2.43 lb |
Weight(1 piece) | 0.75 g |
Tolerance | +/-0.05mm |
Max.Working Temp. | 80℃ |
Central Surface Field | 3300 Gauss |
Magnetic Force: the strongest 8x2mm small disc magnet
Magnetization Direction: axially magnetized
Strength Available: 33-53 MGOe
Coatings Available: Nickel, Zinc,Gold, Ag,Epoxy,Teflon,Parylene
Operating Temperature: N-80°C, M-100°C, H-120°C, SH-150°C, UH-180°C, EH-200°C, AH-230°C
Please fill the form to let us know your need. Our sales will get in touch with you ASAP.
