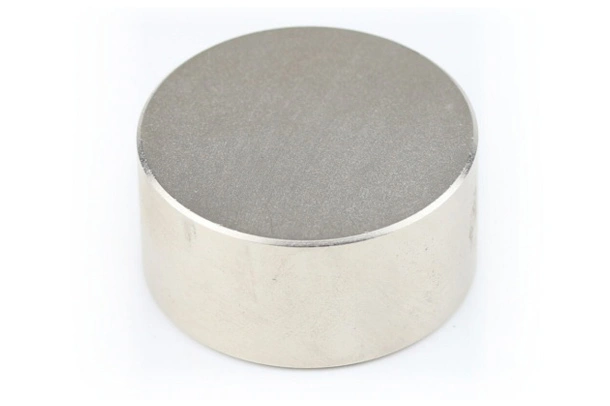

As standard middle-size,45x30mm round disc magnets of neodymium have super strong magnetic force.
All coatings are available for neodymium disc magnets 45x30mm,choose the right coating for your application will save cost.
Various grades are available,choose the correct one according to the working temperature and magnetic force needs.
Our disc neodymium magnets 45x30mm are provided with reasonable package,you can take away it easily.
Magnet Type | Disc Magnet |
Material | Sintered NdFeB, N45 |
Dimension | D45 x 30mm |
Magnetizing Direction | Axially(poles on flat ends) |
Coating | Nickel (Ni-Cu-Ni) |
Strength(magnet to steel plate) | approx. 197.2 lb |
Weight(1 piece) | 357.6 g |
Tolerance | +/-0.1mm |
Max.Working Temp. | 80℃ |
Central Surface Field | 5400 Gauss |
Magnetic Force: the strongest 45x30mm round magnet
Magnetization Direction: axially magnetized
Strength Available: 33-53 MGOe
Coatings Available: Nickel, Zinc,Gold, Ag,Epoxy,Teflon,Parylene
Operating Temperature: N-80°C, M-100°C, H-120°C, SH-150°C, UH-180°C, EH-200°C, AH-230°C
