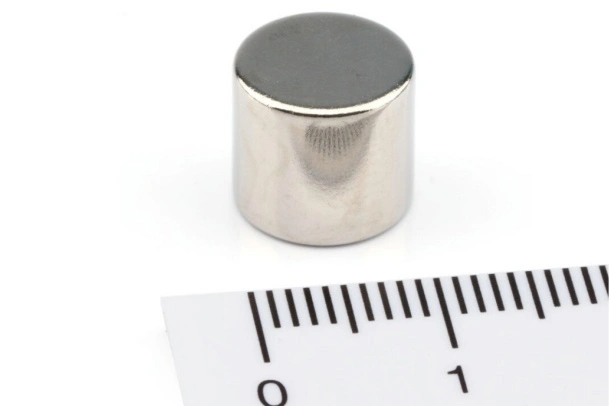

The diameter of 10mm is the best seller and the most popular size in the family of round magnet.Proper size and magnetic force make round disc neodymium magnets 10x10mm ideal holding magnets,they are often used on fridge and whiteboard. 10mm round magnet can be delivered in short lead time.Our 10x10mm rare earth neodymium disc magnets are provided with nickel plated.Retail packaging can be supplied.
Magnet Type | Disc Magnet |
Material | Sintered NdFeB, N52 |
Dimension | D10 x 10mm |
Magnetizing Direction | Axially(poles on flat ends) |
Coating | Nickel (Ni-Cu-Ni) |
Strength(magnet to steel plate) | approx. 10.99 lb |
Weight(1 piece) | 5.88 g |
Tolerance | +/-0.05mm |
Max.Working Temp. | 80℃ |
Central Surface Field | 6600 Gauss |
Magnetic Force: the strongest 10x10mm round magnet
Magnetization Direction: axially magnetized
Strength Available: 33-53 MGOe
Coatings Available: Nickel, Zinc,Gold, Ag,Epoxy,Teflon,Parylene
Operating Temperature: N-80°C, M-100°C, H-120°C, SH-150°C, UH-180°C, EH-200°C, AH-230°C
Please fill the form to let us know your need. Our sales will get in touch with you ASAP.
